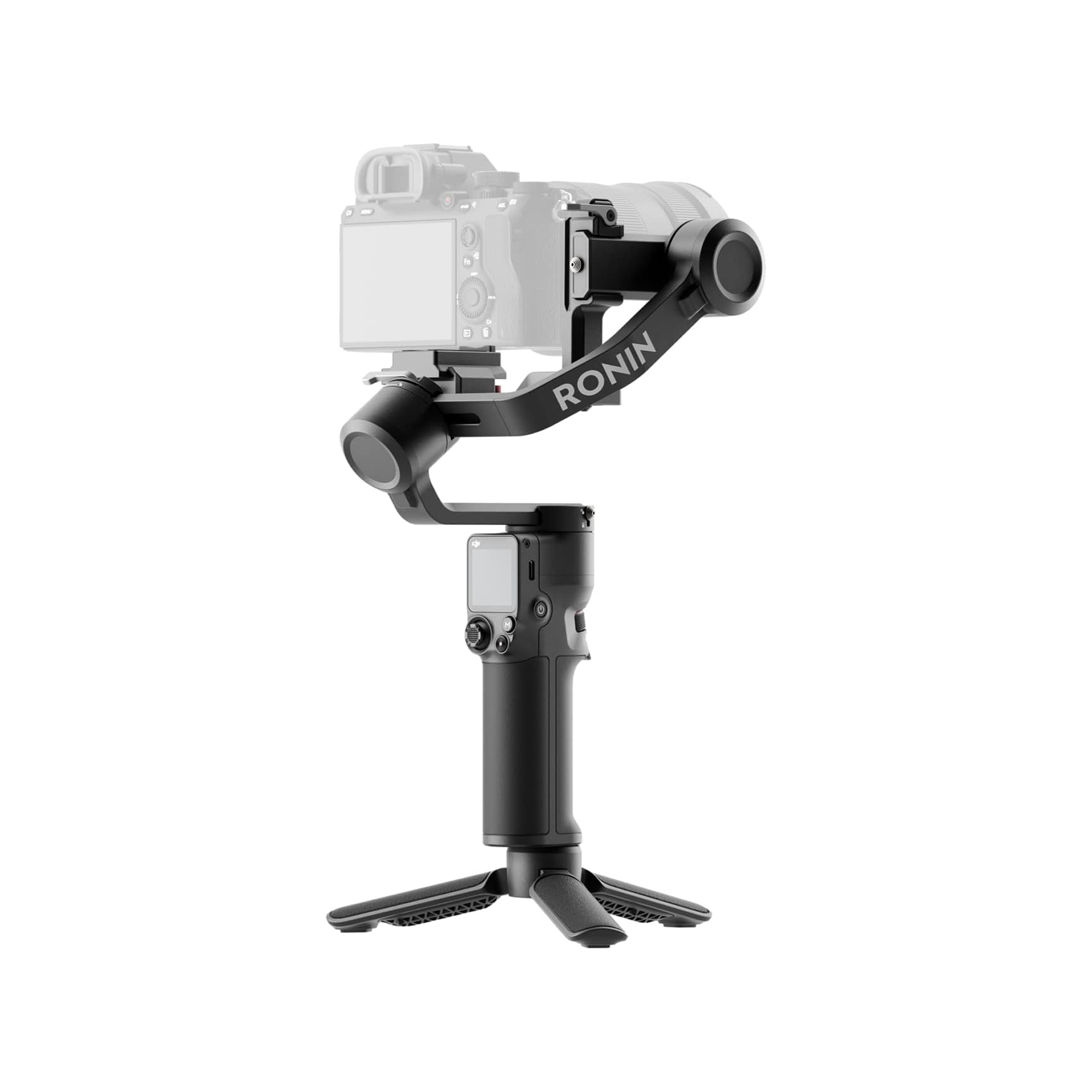

DJI RS 3 Mini Specs
Key Specs
Grip Design | Single Handgrip |
Load Capacity | 0.9 to 4.4 lb / 0.4 to 2 kg |
Number of Axes | 3: Pitch (Tilt), Roll, Yaw (Pan) |
Wireless Frequency | 2.4 GHz |
Wireless Protocol | Bluetooth 5.1 |
Mobile App Compatible | Yes: Android & iOS |
Mounting | 1 x 1/4"-20 Female |
Weight | 1.9 lb / 850 g (with Camera Plate) |
Gimbal
Load Capacity | 0.9 to 4.4 lb / 0.4 to 2 kg |
Number of Axes | 3: Pitch (Tilt), Roll, Yaw (Pan) |
Rotation Range | Yaw (Pan): 360° |
Follow Speed | Pan/Tilt/Roll: 360°/s |
Compatibility
Camera Control | On Compatible Models |
Camera Mounting Screw | 1x 1/4"-20 Male |
Connectivity
Inputs/Outputs | 1x USB-C (2 A 5 VDC Power) |
Wireless Frequency | 2.4 GHz |
Wireless Protocol | Bluetooth 5.1 |
Mobile App Compatible | Yes: Android & iOS |
Battery
Battery Type | 1x 18650 |
Battery Capacity | 2450 mAh / 17.64 Wh |
Battery Runtime | 10 Hours |
Battery Charging Time | 2.5 Hours |
Battery Chemistry | Lithium-Ion |
Voltage | 7.2 VDC |
Environmental
Operating Temperature | 14 to 113°F / -10 to 45°C |
General
Display Type | Fixed Touchscreen OLED |
Mounting | 1 x 1/4"-20 Female |
Dimensions | 12.7 x 7.7 x 3.9" / 323 x 195 x 98 mm |
Weight | 1.9 lb / 850 g (with Camera Plate) |
